HPE ProLiant DL380 Gen10 Plus server
ProLiant DL300 Servers


HPE ProLiant DL380 Gen10 Plus Server

HPE Products
HPE ProLiant DL380 Gen10 Plus server
HPE ProLiant DL380 Gen10 Plus 4309Y 2.8GHz 8-core 1P 32GB-R S100i NC 8SFF 800W PS Server
HPE ProLiant DL380 Gen10 Plus server with one Intel® Xeon® Scalable 4309Y processor, 1x 32 GB dual rank memory, HPE SR100i Gen10 Plus FIO Software RAID controller, eight small form factor drive bays, four standard fans, one HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply, and a 3/3/3 warranty
#P55244-B21
Get a Quote!
HPE ProLiant DL380 Gen10 Plus 4309Y 2.8GHz 8-core 1P 32GB-R MR416i-p NC 8SFF 800W PS Server
HPE ProLiant DL380 Gen10 Plus server with one Intel® Xeon® Scalable 4309Y processor, 1x 32 GB dual rank memory, Broadcom MegaRAID MR416i-p x16 Lanes 4 GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus with HPE 96W Smart Storage Lithium-ion Battery with 145 mm Cable, eight small form factor drive bays, four standard fans, one HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply, and a 3/3/3 warranty
#P55245-B21
Get a Quote!
HPE ProLiant DL380 Gen10 Plus 4314 2.4GHz 16-core 1P 32GB-R MR416i-p NC 8SFF 800W PS Server
HPE ProLiant DL380 Gen10 Plus server with one Intel® Xeon® Scalable 4314 processor, 1x 32 GB dual rank memory, Broadcom MegaRAID MR416i-p x16 Lanes 4 GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus with HPE 96W Smart Storage Lithium-ion Battery with 145 mm Cable, eight small form factor drive bays, four standard fans, one HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply, and a 3/3/3 warranty
#P55247-B21
Get a Quote!
HPE ProLiant DL380 Gen10 Plus 4310 2.1GHz 12-core 1P 32GB-R MR416i-p NC 8SFF 800W PS Server
HPE ProLiant DL380 Gen10 Plus server with one Intel® Xeon® Scalable 4310 processor, 1x 32 GB dual rank memory, Broadcom MegaRAID MR416i-p x16 Lanes 4 GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus with HPE 96W Smart Storage Lithium-ion Battery with 145 mm Cable, eight small form factor drive bays, four standard fans, one HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply, and a 3/3/3 warranty
#P55246-B21
Get a Quote!
HPE ProLiant DL380 Gen10 Plus 4314 2.4GHz 16-core 1P 32GB-R P408i-a NC BCM57412 8SFF 800W PS Server
HPE ProLiant DL380 Gen10 Plus server with one Intel® Xeon® Scalable 4314 processor, 1x 32 GB dual rank memory, HPE Smart Array P408i-a SR (8 Internal Lanes/2 GB Cache) 12G SAS Modular Controller and HPE 96W Smart Storage Lithium-ion Battery with 145 mm Cable, eight small form factor drive bays, four standard fans, one HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply, and a 3/3/3 warranty
#P43358-B21
Get a Quote!
HPE ProLiant DL380 Gen10 Plus 5315Y 3.0GHz 8-core 1P 32GB-R P408i-a NC BCM57412 8SFF 800W PS Server
HPE ProLiant DL380 Gen10 Plus server with one Intel® Xeon® Scalable 5315Y processor, 1x 32 GB dual rank memory, HPE Smart Array P408i-a SR (8 Internal Lanes/2 GB Cache) 12G SAS Modular Controller and HPE 96W Smart Storage Lithium-ion Battery with 145 mm Cable, eight small form factor drive bays, four standard fans, one HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply, and a 3/3/3 warranty
#P43357-B21
Get a Quote!
HPE ProLiant DL380 Gen10 Plus 5315Y 3.2GHz 8-core 1P 32GB-R MR416i-p NC 8SFF 800W PS Server
HPE ProLiant DL380 Gen10 Plus server with one Intel® Xeon® Scalable 5315Y processor, 1x 32 GB dual rank memory, Broadcom MegaRAID MR416i-p x16 Lanes 4 GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus with HPE 96W Smart Storage Lithium-ion Battery with 145 mm Cable, eight small form factor drive bays, four standard fans, one HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply, and a 3/3/3 warranty
#P55248-B21
Get a Quote!

Click here to jump to more pricing!

Overview:

Do your servers need increased performance in storage, compute, or expansion?

The HPE ProLiant DL380 Gen10 Plus server is adaptable for diverse workloads and environments, providing you with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, this 2U/2P platform is capable for deployment in multiple environments, built on 3rd Generation Intel® Xeon® Scalable Processors, and backed by a comprehensive warranty. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL380 Gen10 Plus server offers improved data transfer rates and higher networking speeds.

What's New

  • Supports 3rd Generation Intel® Xeon® Scalable Processors.
  • Support for PCIe Gen4, resulting in improved bandwidth and throughput.
  • Support for industry-standard OCP 3.0 Network Adapters.
  • Support for Trimodal (NVMe/SAS/SATA) HPE Smart Array controllers.

Features:

Built for Some of the Most Demanding Workloads

The HPE ProLiant DL380 Gen10 Plus server is built with foundational intelligence to transform IT with insights that enhance workload performance, placement, and efficiency, delivering better outcomes faster.

Provide real-time operational feedback on server performance and recommendations for fine-tuning BIOS settings to customize for changing business needs.

360-degree Holistic Security

The HPE ProLiant DL380 Gen10 Plus server provides an enhanced, holistic, 360-degree view to security that begins in the manufacturing supply chain and concludes with a safeguarded, end-of-life decommissioning.

HPE ProLiant security begins with the corruption-free manufacture of the server and auditing the integrity of every component – hardware and firmware – to provide verification that the server begins its lifecycle uncompromised through the supply chain.

HPE ProLiant servers provide rapid detection of a security-compromised server, even to the point of not allowing it to boot, verify containment of malicious code, and protect healthy servers.

HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations.

When it’s time to retire or repurpose an HPE ProLiant server, one button secure erase speeds and simplifies the complete removal of passwords, configuration settings, and data, preventing inadvertent access to previously secured information.

Intelligent Management Automation

The HPE ProLiant DL380 Gen10 Plus server simplifies and automates management tasks, establishing a solid foundation for an open, hybrid cloud platform enabled by composability.

Embedded in HPE servers, HPE Integrated Lights-Out (iLO) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Automation and software defined control reduces time spent on provisioning and maintenance, as well as reduces deployment times from weeks to mere days.

HPE InfoSight for servers continually analyzes server infrastructure and applies real-world examples of hundreds of thousands of servers to predict and prevent problems before they can adversely affect business operations.

Available in an As-a-Service Experience

The HPE ProLiant DL380 Gen10 Plus server is supported by HPE GreenLake to simplify IT infrastructure management across your entire hybrid estate. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.

Hewlett Packard Enterprise provides customers choice in how they acquire and consume IT beyond traditional financing and leasing, offering options that free trapped capital, accelerate infrastructure updates, and provide on-premises pay-per-use consumption with HPE GreenLake.

Specifications:


HPE ProLiant DL345 Gen10 Plus Server Specifications
Processor Type Intel®
Processor family 3rd Generation Intel® Xeon® Scalable Processors
Processor core available 16 to 40 core, depending on processor
Processor cache 12 - 60 MB L3, depending on processor
Maximum memory 8.1 TB - RDIMM (4 TB per processor), 11.2 TB - LRDIMM and Intel® Optane™ (5.6 TB per processor with 8x LRDIMM and 8x 512 GB Intel Optane)
Memory slots 32
Memory type HPE DDR4 SmartMemory
Persistent Memory Type Intel® Optane™ Persistent Memory for HPE
Persistent Memory Media Capacity 128 GB - 512 GB
NVDIMM type Optional: Intel® Optane™ Persistent Memory for HPE
NVDIMM capacity 128 GB - 512 GB
Memory protection features RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC); Intel Optane Persistent Memory
Drive supported 8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD, 2 M.2 SATA SSD standard on primary riser, depending on configuration, 8 SFF mid-tray optional, 6 SFF rear drive optional or 4 LFF mid tray optional, 3 LFF rear-drive optional and 2 SFF or 2 Dual UFF rear-drive optional, 20 SFF NVMe optional, NVMe support via Express Bay will limit maximum drive capacity, depending on model
Infrastructure management HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional, requires licenses)
System fan features Hot-plug redundant fans, standard
Power supply type Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies (2.6”)
Expansion slots 8, for detailed descriptions refer to the QuickSpecs
Network controller Intel I350 1GbE 4 port Base-T OCP3 adapter or Broadcom 57416 10GbE 2 port Base-T adapter and/or optional network adapters depending on model
Storage controller HPE SR932i-p and/or HPE SR416i-a and/or HPE MR216i-a and/or HPE MR416i-a and/or HPE MR216i-p and/or HPE MR416i-p and/or HPE Smart Array P816i-a SR and/or HPE Smart Array E208i-a SR and/or HPE Smart Array P408i-a SR and/or HPE Smart Array E208i-p SR and/or HPE Smart Array E208e-p SR and/or HPE Smart Array P408e-p SR and/or HPE Smart Array P408i-p SR
Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, please Contact Us.
Processor Name 3rd Generation Intel® Xeon® Scalable Processor
Processor number 1 or 2
Processor speed 3.1 GHz maximum, depending on processor
Memory, standard 16 GB (1 x 16 GB) RDIMM
Included hard drives None ship standard, SFF and LFF drives supported
Optical drive type Optional DVD-ROM Optional via Universal Media Bay External support only
Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Form factor 2U

Views:

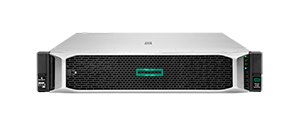

Front View
Front Open View

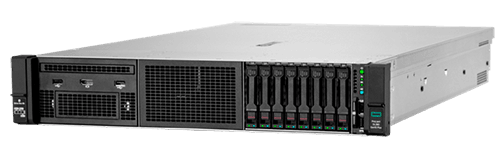

Left angle View
Rear View
Top Open View

HPE ServicesServices:

HPE POINTNEXT SERVICES

HPE Pointnext Services brings together technology and expertise to help you drive your business forward and prepare for whatever is next.

Operational Services from HPE Pointnext Services

HPE Pointnext Tech Care provides fast access to product-specific experts, an AI-driven digital experience, and general technical guidance to help enable constant innovation. We have reimagined IT support from the ground up to deliver faster answers and greater value. By continuously searching for better ways to do things—as opposed to just fixing things that break—HPE Pointnext Tech Care helps you focus on achieving your business goals.

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment, and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.

HPE Integration and Performance Services help you customize your experience at any stage of your product lifecycle with a menu of services based on individual needs, workloads, and technologies.

  • Advise, design, and transform
  • Deploy
  • Integrate and migrate
  • Operate and improve
  • Financial Services
  • Greenlake Management Services
  • Retire and sanitize
  • IT Training and personal development

Other related services

HPE Education Services delivers a comprehensive range of services to support your people as they expand their skills required for a digital transformation. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options.

Defective Media Retention is optional and allows you to retain Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

HPE GREENLAKE

HPE Greenlake is HPE’s market-leading IT as-a-Service offering that brings the cloud experience to apps and data everywhere – data centers, multi-clouds, and edges – with one unified operating model. HPE GreenLake delivers public cloud services and infrastructure for workloads on premises, fully managed in a pay per use model.

**Intel, Intel Xeon, and Intel Optane are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. All third-party marks are property of their respective owners.
