Overview:
Are you looking for our most flexible and powerful tower server for your SMB and remote offices?

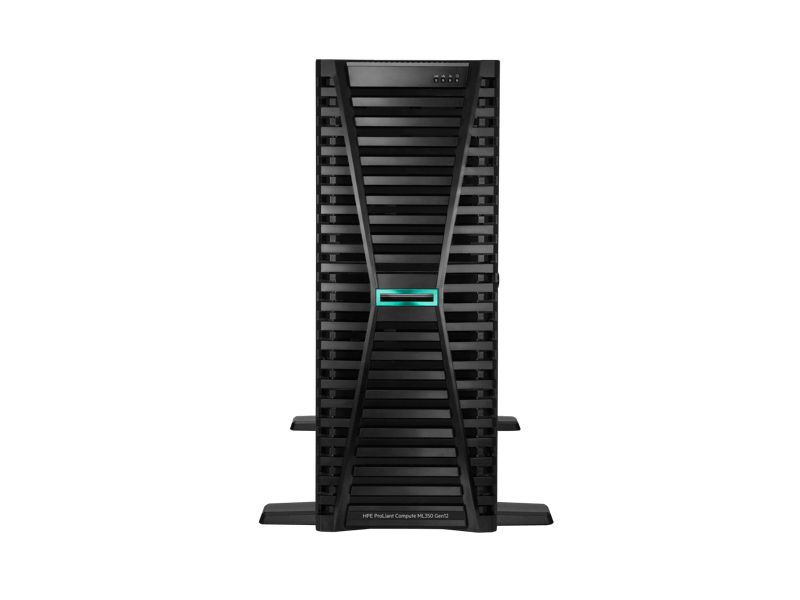

The HPE ProLiant Compute ML350 Gen12 is a robust 2P tower server with optional rackable chassis for various environments, and delivers exceptional compute performance, security, reliability, and expandability.
Powered by latest Intel® Xeon® 6700/6500 P-series processors (up to 86 Pcores per socket), up to 8 TB DDR5 6400 memory, the HPE ProLiant Compute ML350 Gen12 server fulfills a wide range of demanding workloads.
The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating a fingerprint for the Intel® Xeon® 6700/6500 P-series processors that must be matched exactly before the server will boot.
The HPE ProLiant Compute ML350 Gen12 server is an excellent choice for diverse workloads such as IT infrastructure, data management, VDI, and ERP/CRM. Scale and adapt to any environment with this server and accelerate your growing business.
P87796-005 - HPE ProLiant Compute ML350 Gen12 server with one Intel® Xeon® 6505P Processor, 64 GB (1x64 GB) Dual Rank Memory, one HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller, support for eight SFF drives, three standard fans, two HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSDs, two HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kits, one TPM (Trusted Platform Module), one HPE ProLiant Compute ML Gen11/Gen12 Intrusion Cable Kit, and a 3/3/3 warranty.
What's New
- Powered by Intel® Xeon® 6700 and 6500 series with P-cores; up to 86 P-cores per socket (172 P-cores per server), 350W (TDP); increased memory bandwidth to 6400 MT/s2, up to 8TB DDR5 memory capacity.
- Supports ultra-high SSD performance with NVMe x4 and EDSFF drive cages, and allowing mixed dual-mode LFF and tri-mode SFF drive cages as hybrid storage optimization solution.
- Provides up to 24 NVMe drives with PCIe Gen5 x2 bandwidth to have maximum storage capacity with balanced performance solution.
- Includes HPE Integrated Lights-Out 7 (iLO 7) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Compute Gen12 servers seamlessly from anywhere.
- Supports new NS204i-u V2 as hot-pluggable, high-availability, RAID1-protected M.2 NVMe boot option.
- Supports NVIDIA® L4 24GB Accelerator.
Features:
Next-Level Security, Chip to Cloud
From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Compute Gen12 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements.
Silicon root of trust from HPE, establishes a zero-trust security framework at the silicon level to ensure firmware integrity. Continuous protection detects compromised servers and prevents them from booting if malicious code is found. Edge servers are safeguarded with default IDevID certificates.
HPE ProLiant Compute servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.
Intel® Xeon® 6 processors add hardware- and software-assisted security features such as Intel® Software Guard Extensions (SGX) for application isolation and Trusted Domain Extensions (TDX) for VM Isolation, which help protect the server hardware foundation and safeguard data in memory.
HPE iLO 7 supports quantum-resistant (PQC) algorithms and signs HPE ProLiant Compute Gen12 firmware with algorithms approved by CNSA 2.0, which enhances resilience against potential future attacks by quantum computers.
Optimized Performance for your Workloads: Accelerated, Open, and Efficient
The HPE ProLiant Compute ML350 Gen12 server is an excellent choice for compute and data storage demanding workloads (AI, machine learning [ML], telco, DB analytics,) requiring high core count, GPU capabilities, and network and I/O bandwidth.
Harness major compute performance. The HPE ProLiant Compute ML350 Gen12 server is powered by Intel® Xeon® 6700P/6500P-series processors that support up to 86 P-cores (172 P-cores per server) at 350W TDP.
Enjoy advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 4 x16 PCIe Gen5 and 2 x16 OCP slots to improve I/O throughput and reduce latency.
Utilize 32 DIMM slots for up to 8 TB DDR5 memory with increased memory bandwidth and performance.
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated
HPE ProLiant Compute ML350 Gen12 servers are engineered for your hybrid world. The new HPE ProLiant Compute Gen12 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.
Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.
These experiences are engineered and built into all HPE ProLiant Compute Gen12 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.
Industry-leading Services and Ease of Deployment
The HPE ProLiant Compute ML350 Gen12 server comes with a complete set of HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
HPE Services simplify all stages of the IT journey. Advisory and Transformation Services professionals understand your challenges and design an effective solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
HPE IT investment solutions help you transform into a digital business with IT economics that align with your business goals. Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Hardware Specs:
HPE ProLiant ML350 Gen12 server

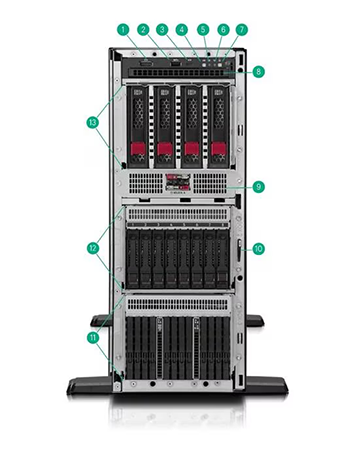

Front View – Chassis with optional 12 EDSFF/8 SFF/4 LFF Drive Cage Kits and front NS204i-u shown
| 1 |
DisplayPort 1.1a |
| 2 |
USB 3.2 Gen1 port |
| 3 |
iLO service port (Type-C) |
| 4 |
UID button/LED |
| 5 |
OCP NIC status LED1 |
| 6 |
Health LED |
| 7 |
Power on/Standby button and system power LED |
| 8 |
Optical drive bay |
| 9 |
NS204i-u (Front) or Media Bay filler panel/LTO |
| 10 |
Serial number/iLO information pull tab |
| 11 |
Box 3: 12 EDSFF drive cage, Optional for 8SFF/4LFF/NVMex4*/EDSFF |
| 12 |
Box 2: 8 SFF drive cage, Optional for 8SFF/4LFF/NVMex4* |
| 13 |
Box 1: 4 LFF drive cage, Optional for 8SFF/4LFF/NVMex4* with x2 cable kit or Internal LTO Tape Drive |
1x4 SFF drive cage supports NVMe drives only. Up to (2) NVMex4 drive cage with x4 DA cable kit or (3) NVMEx4 drive cage with x2 DA cable kit.

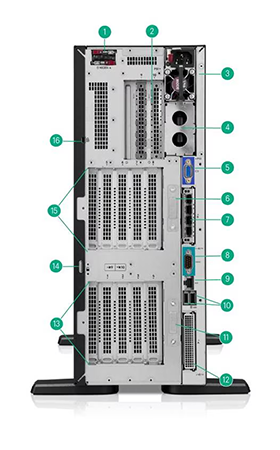

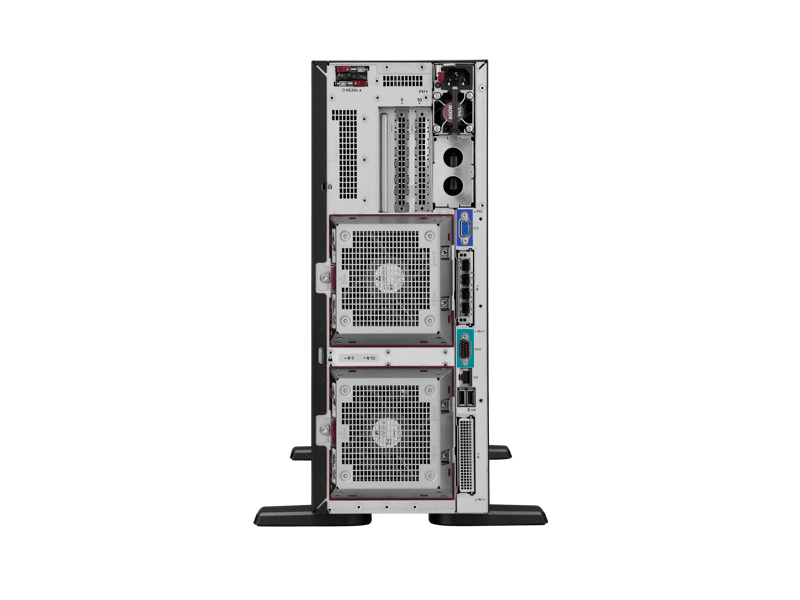

Rear View – With optional rear NS204i-u and HPE Flex Slot RPS shown.
| 1 |
HPE NS204i-u V2 (Optional) |
| 2 |
PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation) |
| 3 |
Flexible Slot power supply 1 |
| 4 |
Flexible Slot power supply 2 (Optional) |
| 5 |
VGA Port |
| 6 |
External Fan connector 9 |
| 7 |
Slot 15 OCP B (Optional for NIC) |
| 8 |
Serial port (Optional) |
| 9 |
iLO management port |
| 10 |
USB 3.2 Gen 1 ports x2 |
| 11 |
External Fan connector 10 |
| 12 |
Slot 14 OCP A (Optional for OROC/NIC) |
| 13 |
PCIe Slots 1-4 (Primary riser) |
| 14 |
Padlock eye |
| 15 |
PCIe Slots 5-8 (Optional Secondary riser, 2nd processor required for expansion card installation) |
| 16 |
Kensington slot |

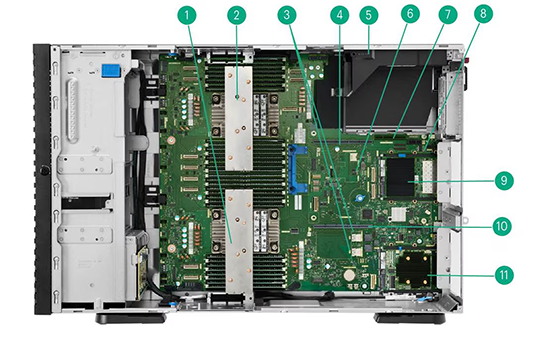

Internal View – with optional 2nd CPU, OCP NIC adapter and NS204i-u shown
| 1 |
CPU Socket 11 |
| 2 |
CPU Socket 22 |
| 3 |
(2) USB 3.2 Gen1 ports |
| 4 |
Secondary riser connector (Optional) |
| 5 |
Megacell battery holder (Under)/ HPE NS204i-u V2 (Upper) |
| 6 |
HPE NS204i-u V2 power connector |
| 7 |
Tertiary riser* sideband connector (Optional) |
| 8 |
Serial port cable connector |
| 9 |
Slot 15 OCP B (Optional for NIC adapter) |
| 10 |
Primary riser connector |
| 11 |
Slot 14 OCP A (Optional for OROC/NIC) |
1 CPU1 (bottom) shown Performance Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Performance Heatsink with fully memory populated in 16 slots (32 slots in total)
