HPE ProLiant DL360 Gen12 6517P Server
16‑core 3.20 GHz, 64GB RAM

Overview:

Are you looking for a compact, rack-optimized two-socket server that supports hybrid cloud workloads?

The HPE ProLiant Compute DL360 Gen12 is a compact 1U 2P server that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications. Powered by Intel® Xeon® 6 processors with up to 144 cores and up to 8 TB of memory as well as 20 EDSFF E3.S NVMe drives, the HPE ProLiant Compute DL360 Gen12 is an ideal hybrid cloud platform for enterprise applications and workloads. This server also provides extreme scalability through a hybrid front storage cage that supports not only SFF and E3.S drives, but also an OS Boot device and two front OCP NICs as optional.

The HPE ProLiant Compute DL360 Gen12 is engineered for your future, with next-level security, optimized performance and efficiencies, and automated, AI-driven productivity.

P89244-005 - HPE ProLiant Compute DL360 Gen12 server with one Intel® Xeon® 6517P Processor, 64 GB (2x32 GB) Dual Rank Memory, one HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller, one HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device, support for eight SFF drives, one HPE ProLiant DL3X0 Gen11 1U High Performance Fan Kit, two HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kits, one TPM (Trusted Platform Module), one HPE Bezel Lock Kit, one HPE ProLiant DL3XX Gen11 Intrusion Cable Kit, one HPE ProLiant Gen11 1U Common Bezel Kit, and a 3/3/3 warranty

What's New

• Intel® Xeon® 6 processors that support up to 144 cores, up to 8 TB of DDR5 memory at speeds up to 6400 MT/s, and up to 2x average higher performance for general compute versus previous generations.
• Optional front accessible boot device for quicker access and redesigned intake on front of chassis for optimal airflow and enhanced thermal efficiency.
• Three cooling options — air-cooling, closed-loop liquid cooling for high performance processors, and direct liquid cooling for performance/energy efficiency to support sustainability initiatives.

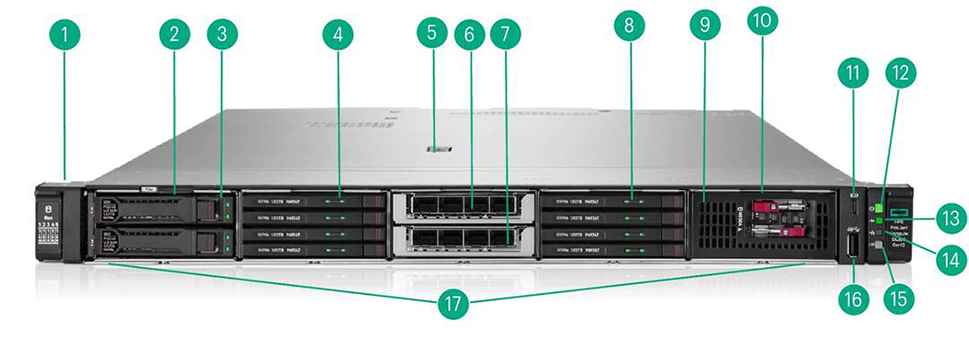

• Ability to use up to 10 SFF or 20 EDSFF E3.S drives as well an OS Boot device and OCP NICs in the front cage.
• Up to three single-wide (SW) GPUs.
• HPE Integrated Lights-Out 7 (iLO 7) server management software with streamlined manageability through a redesigned GUI, Redfish API, and increased security via patented secure enclave technology.

Features:

Next-Level Security, Chip to Cloud

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Compute Gen12 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements built into our DNA.

With the silicon root of trust from HPE and a zero-trust security framework to ensure firmware integrity, this server continuously detects if it is compromised and is prevented from booting if malicious code is found. Additionally, this server is safeguarded with default IDevID certificates.

HPE ProLiant Compute servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.

The HPE ProLiant Compute DL360 Gen12, powered by Intel® Xeon® 6 processors, adds hardware- and softwareassisted security features, including Intel® Software Guard Extensions (SGX) for application isolation and Trusted Domain Extensions (TDX) for VM isolation.

HPE iLO 7 supports quantum-resistant (PQC) algorithms and signs HPE ProLiant Compute Gen12 firmware with algorithms approved by CNSA 2.0, which enhances resilience against potential future attacks by quantum computers.

Optimized Performance and Efficiency

An excellent choice for compute and data storage demanding workloads requiring maximum core count, GPU capabilities, and network and I/O bandwidth.

Powered by Intel® Xeon® 6 processors with next-generation technology including 16 DIMM channels per processor that supports up to 144 cores and up to 8 TB of DDR5 memory at speeds up to 6400 MT/s.

Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 3 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

HPE iLO 7 provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

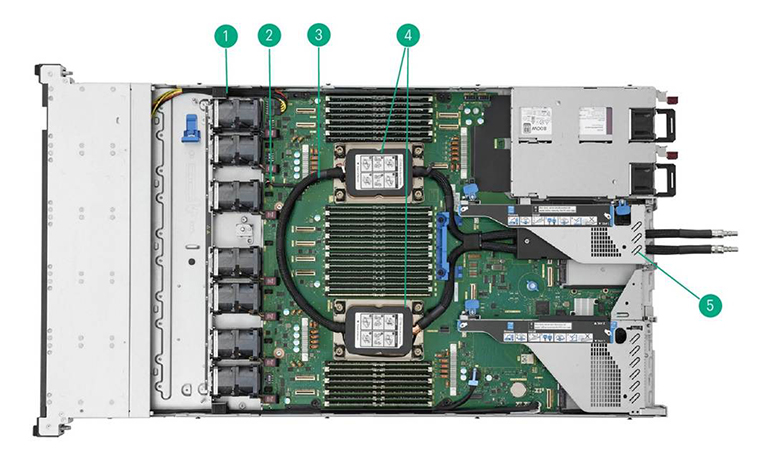

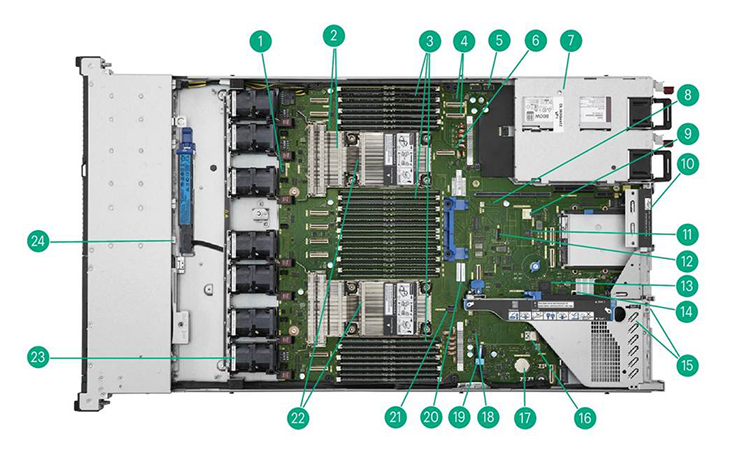

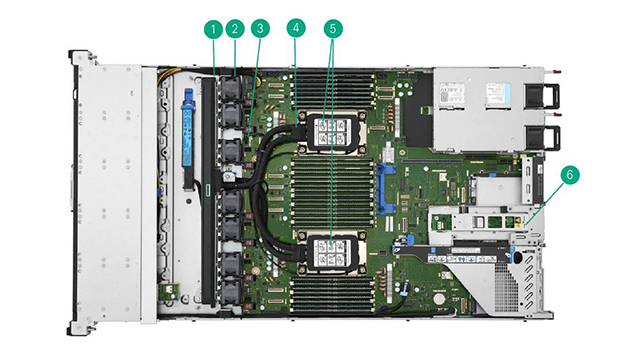

Choice of three cooling options — air-cooling, closed loop liquid cooling for high performance processors, and direct liquid cooling for performance and energy efficiency to support sustainability initiatives.

Automated, AI-Driven Productivity

HPE ProLiant Compute DL360 Gen12 servers power demanding workloads with the highest security standard for every stage of the server lifecycle, and visibility to drive energy usage and cost efficiencies, helping you optimize your business from edge to cloud.

Transform operations to do more, see more, and gain greater, more proactive control through AI-driven insights. Monitor and maintain all servers within your distributed environment with actionable dashboards that provide a clear view of up-to-date status of server health across all locations.

Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.

These experiences are engineered and built into all HPE ProLiant Compute Gen12 servers, whether purchased as physical servers or consume as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management, an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your distributed compute environment.

Technical Specifications:

Hardware Specs:

Services & Add-Ons:

• HPE Tech Care
• HPE iLO Advanced
• Windows Server 2025
• Storage Options
• Memory (RAM Options)
• Quick Recommendations

Documentation:

Download the HPE ProLiant Compute DL360 Gen12 6517P 1P 2x32GB-R 8SFF NS204i-u v2 MR408i-o 2x1000W PS NA Server Data sheet (.PDF)

Download the HPE ProLiant DL360 Gen12 Server Datasheet (.PDF)

Download the HPE ProLiant DL360 Gen12 Server Quick Specs (.PDF)
