HPE StoreEasy 1660 SAS Storage
Flexible File and Application Storage


HPE StoreEasy 1660 SAS Storage

HPE Products
HPE StoreEasy 1X60 Storage
HPE StoreEasy 1660 16TB SAS Storage
Includes: 8 x 2TB 12G 7.2K RPM LFF SAS HDDs Pre-Installed and 4 Open LFF Slots in Front and 2 SFF SSDs on M.2 Card in Rear PCIe Slot with Pre-Installed OS
#Q2P73A
Our Price: $6,097.00

Click here to jump to more pricing!

Overview:

Your organization faces many challenges, why should data storage be one of them? If you need an easy-to-manage centralized space for securely storing documents, images, audio, and video files, look no further than HPE StoreEasy 1000 Storage. With HPE StoreEasy, you can have flexible, efficient, and reliable file storage, right-sized for your organization’s needs and budget, without compromising on quality or capabilities. Available in a diverse range of form factors, capacity, and performance options, HPE StoreEasy 1000 can help you get more out of your file storage with less effort. It enhances the usable capacity, simplifyies management, and helps you protect your indispensable digital assets in an evolving threat landscape. The new sixth generation of HPE StoreEasy 1000 Storage builds on that foundation through a new simplified management experience developed by HPE, enhanced built-in security protections, more options to expand capacity, and greater performance.

  • New sixth-generation HPE StoreEasy 1460, 1560, 1660, and 1860 models
  • 2X as simple to manage1 through a brand-new, intuitive management console developed by Hewlett Packard Enterprise.
  • Built from the world's most secure industry-standard servers2 with expanded security capabilities to help you protect your employees, customers, and organization in an evolving threat landscape.
  • Lower cost-capacity expansion with up to 60% greater internal capacity3 through larger drives and more drive slots.
  • Up to 2X better performance4 than the previous generation and up to 50% lower latency5 with flash cache for resource-intensive workloads

HPE StoreEasy 1X60 Storage

Whether you are a small, medium, or large distributed organization with remote offices, you need reliable, cost-efficient storage that can keep pace with users and growing volumes of file data without getting in the way of how your organization operates.

If you’re in search of an easy-to-manage centralized space for securely storing documents, images, audio, and video files, look no further than HPE StoreEasy 1000 Storage: flexible, efficient, and reliable network-attached storage, right-sized for your organization’s needs and budget, without compromising on quality or capabilities.

Built from the foundation of the most secure industry standard servers and running the Windows Storage Server 2016 Standard Edition operating system, the new HPE StoreEasy 1460, 1560 1660 and 1860 deliver a radically simplified admin experience through a new management console developed by Hewlett Packard Enterprise, lower-cost internal capacity expansion, better performance options for resource-intensive workloads, and more security protections built-in and included as standard to help you better protect your customers, employees, and organization against loss, corruption, and breaches.

Opt for pre-configured models that include the compute, capacity, and connectivity options most organizations need in a NAS, or tailor a HPE StoreEasy to your requirements with standard and higher performance configure-to-order models and options.

1 Based on HPE internal testing with 50% fewer tools and fewer actions for key NAS administrative tasks.
2 Based on results of external, third-party penetration testing of servers from different manufacturers
3 Based on the HPE StoreEasy 1660 with optional mid-chassis expansion cage compared to the previous generation HPE StoreEasy 1650
4 Based on HPE internal testing comparing the throughput of HPE StoreEasy 1660 and previous generation HPE StoreEasy 1650 with similar drive configurations and the same workload pattern
5 Based on HPE internal testing using a HPE StoreEasy 1660 with and without using an SSD-backed HPE SmartCache with a 50% cache hit rate

Features:

Customized and Tailored for File Storage

HPE StoreEasy 1000 Storage is built on industry-leading HPE ProLiant Gen10 DNA and comes with pre-configured hardware and Microsoft Windows Storage Server 2016 OS. Get your NAS out of the box and online fast with tools that simplify installation and curb common configuration errors.

Cutting management efforts in half and overhauling user experience, years of HPE design and development experience built the new management console for the sixth-generation HPE StoreEasy 1000. This laid the foundation for a more modern and agile approach for monitoring and managing file storage.

The new web-based management UI and its REST API enables administrators with any level of storage expertise to simplify core operations, including management of file shares, quotas, volumes, snapshots, and storage pools.

Economical hard disk drive (HDD) bundles make it easier for you to buy, deploy and provision additional storage capacity as your data needs grow using guided configurations. Quickly configure low-capacity email alerts to reduce disruption caused by capacity limitations.

Efficiency Saves you Time and Money

Achieve an average of 50 percent space savings with granular data deduplication and compression.2 An enhanced deduplication engine supports large files, up to 1 TB, and volumes up to 64 TB.

Built-in file sync and share enables employees, mobile workers and distributed teams to access their work files from any internet-connected desktop, smartphone, or tablet. Organizations can apply policies to wipe devices remotely and enforce lock screen passwords to protect data on employee devices.

Advanced data management capabilities automatically improve use of resources, comply with data retention policies, and enhance protection of sensitive files, even if they're downloaded from HPE StoreEasy and emailed to unauthorized recipients.

Help users and applications get more done, faster, with optional flash acceleration bundles for HPE StoreEasy 1660 and 1860 that lower latency by up to 50% and boost IOPS by up 20%.1

Multi-dimensional Protection for Your Data

HPE StoreEasy 1000 Storage protects data while at rest with file system encryption and with Microsoft BitLocker drive encryption, while it is being transferred with SMB encryption and signing, and at a physical drive level with a lockable bezel for multi-dimensional file data security.

HPE StoreEasy 1000 provides additional layers of protection as standard through device integrity checks with Trusted Platform Module, digitally signed firmware on network adapters and drives, and runtime firmware validation every 24 hours via HPE iLO Advanced Premium Security Edition.

File Classification Infrastructure can dynamically identify files based on sensitivity and implement sophisticated access controls based on your organization's requirements using Active Directory Rights Management Services.

Install and run endpoint protection such as antivirus on the system itself, which reduces the cost and complexity of connecting an external endpoint protection server. Prevent against data loss with Volume Shadow Copy Service online snapshots and simple cloud backup to Microsoft Azure.

Highly Resilient to Prevent Disruption to Your Business and Users

HPE StoreEasy 1000 Storage increases uptime with standard features including nearly continuous health monitoring with HPE Active Health System, redundant components, file system online self-healing, online verification, and rapid repair that reduces downtime from file corruption to minutes.

Protect data from simple errors or massive failures using built-in replication, up to 100 TB, or opt for Carbonite Availability replication software for real-time byte-level replication between sites.

Comprehensive, full system support from HPE file storage experts with onsite parts and labor warranty for the system and software telephone support. Expand or enhance your base support coverage through optional services from HPE Pointnext for HPE StoreEasy 1000.

Advanced diagnostics and near-continuous monitoring, enabled by the HPE iLO Management Engine, deliver greater stability and shorter downtimes.

1 Based on HPE internal testing using a HPE StoreEasy 1660 with and without using an SSD-backed HPE SmartCache with a 50% cache hit rate
2 “Plan to Deploy Data Deduplication,” Microsoft

Specifications:


HPE StoreEasy 1660 Storage Specifications
Capacity 16TB and 32TB
Protocol Supported SMB, NFS, iSCSI over Ethernet, HTTP/S, FTP/S
Replication Features DFS-R for data sets up to 100 TB, optional Carbonite Double-Take Availability for real-time byte-level replication and disaster recovery
Storage Expansion All HPE StoreEasy products capacity can be expanded externally using the HPE D3610 (LFF) and D3710 (SFF) disk enclosures.
Compatible Operating Systems Microsoft Window, macOS, Linux, Unix supported Pre-installed on all HPE StoreEasy models: Windows Storage Server 2016 Standard Edition Operating System
Management Features HPE StoreEasy management console, HPE iLO5, HPE Smart Storage Administrator, Windows Server Manager and utilities
Drive SFF/LFF SAS/SATA, depending on model
Form Factor (fully configured) 4 (c3000) 8 (c7000)

Hardware Specs:

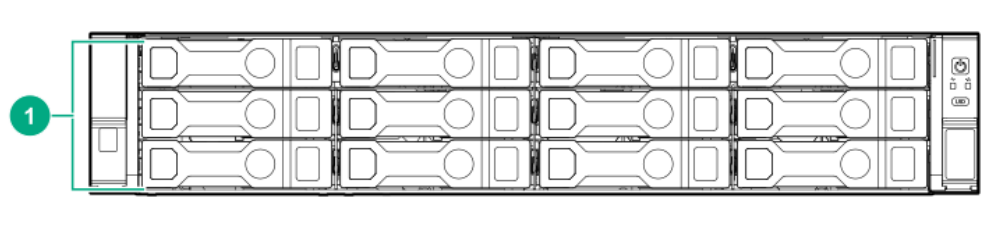

HPE StoreEasy 1660 Storage Front View
Front View

  1. 12 x LFF SATA/SAS Hot Pluggable Drive Bays

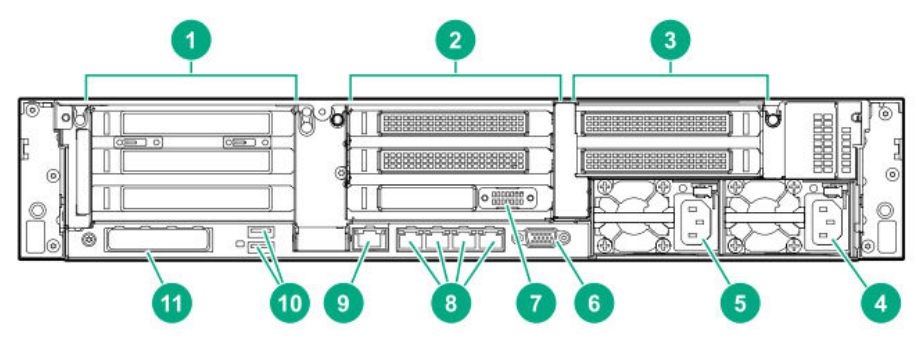

HPE StoreEasy 1660 Storage Rear View
Rear View

  1. Primary Riser slots 1-3
  2. Primary Riser slots 4-6 (optional)
  3. Not used
  4. Power Supply 1
  5. Power Supply 2
  6. Video port
  7. Not used
  8. 1Gb RJ-45 ports 1-4
  9. iLO management port
  10. USB 3.0 ports
  11. FlexibleLOM slot

Views:

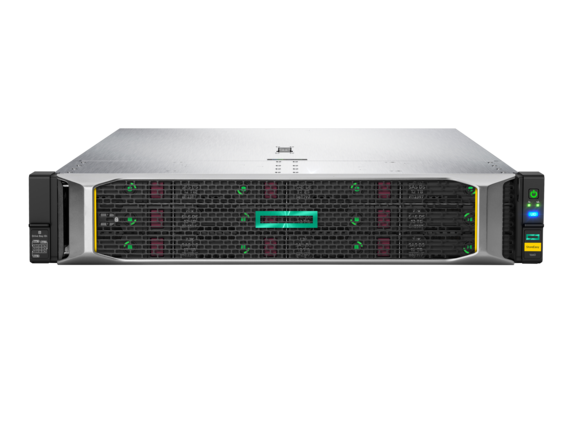

Front View

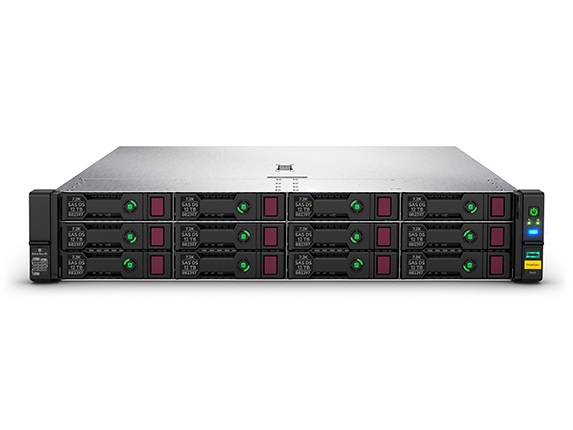

Front Open View

HPE ServicesServices:

HPE Pointnext

HPE Pointnext leverages our breadth and depth of technical expertise and innovation to help to accelerate digital transformation. A comprehensive portfolio that includes—Advisory, Professional, and Operational Services is designed to help you evolve and grow today and into the future.

Operational Services

  • HPE Flexible Capacity is a new consumption model to manage ondemand capacity, combining the agility and economics of public cloud with the security and performance of on-premises IT.
  • HPE Datacenter Care offers a tailored operational support solution built on core deliverables. It includes hardware and software support, a team of experts to help personalize deliverables and share best practices, as well as optional building blocks to address specific IT and business needs.
  • HPE Proactive Care is an integrated set of hardware and software support including an enhanced call experience with start to finish case management helping resolve incidents quickly and keeping IT reliable and stable.
  • HPE Foundation Care helps when there is a hardware or software problem offering several response levels dependent on IT and business requirements.

Advisory Services includes design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge.

Professional Services helps integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment.
