Overview:
Are you looking for a dual-socket scalable server solution to power data analytics or hybrid cloud workloads?
The HPE ProLiant DL380 Gen11 server is a scalable 2U 2P solution that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications
Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 64 cores, 8 TB of memory, and 20 EDSFF drive as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL380 Gen11 server is a perfect solution for software-defined storage, video transcoding, and virtualized apps.
The HPE ProLiant DL380 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What's New
- Powered by the 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that support up to 64 cores at 350W and 16 DIMMs for DDR5 memory at speeds up to 5600 MHz.
- Support for up to 8 TB total DDR5 memory with 16 DIMM channels per processor delivers increased performance, lower power requirements, and High Bandwidth Memory (HBM) support.
- Support for PCIe Gen5, resulting in improved bandwidth, advanced data transfer rates, and higher network speeds from the PCIe Gen5 serial expansion bus.
- Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
- Supports hot-pluggable, high-availability RAID M.2 boot options.
- Supports up to 8 single wide (SW) or 3 double wide (DW) GPUs to accelerate graphic intense workloads.
Features:
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated
HPE ProLiant DL380 Gen11 servers are engineered for your hybrid world. HPE ProLiant DL380 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.
Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.
These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consume as-a-service using HPE GreenLake as your compute and storage demands grow.
Simplify and secure server management from edge to cloud with HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.
Trusted Security by Design: Uncompromising, Fundamental, and Protected
The HPE ProLiant DL380 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.
The server, powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which secure the server hardware foundation on which critical apps run and better protect data in memory.
HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.
HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.
From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.
Optimized Performance for your Workloads: Accelerated, Open, and Efficient
The HPE ProLiant DL380 Gen11 server is an excellent choice for compute and data storage demanding workloads (AI, ML, telco, DB analytics, VDI, containers) requiring maximum core count, GPU capabilities, and network and I/O bandwidth.
Harness major computer performance. The HPE ProLiant DL380 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores per processor, 350W, and up to 8 TB of memory.
The HPE ProLiant DL380 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.
It provides 16 DIMM channels per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Available in an As-a-Service Experience
The HPE ProLiant DL380 Gen11 server is supported by HPE GreenLake to simplify IT infrastructure management across your entire hybrid estate. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.
Hewlett Packard Enterprise provides customers with choices in how they acquire and consume IT beyond traditional financing and leasing, offering options that free trapped capital, accelerate infrastructure updates, and provide on-premises pay-per-use consumption with HPE GreenLake.
Hardware Specs:

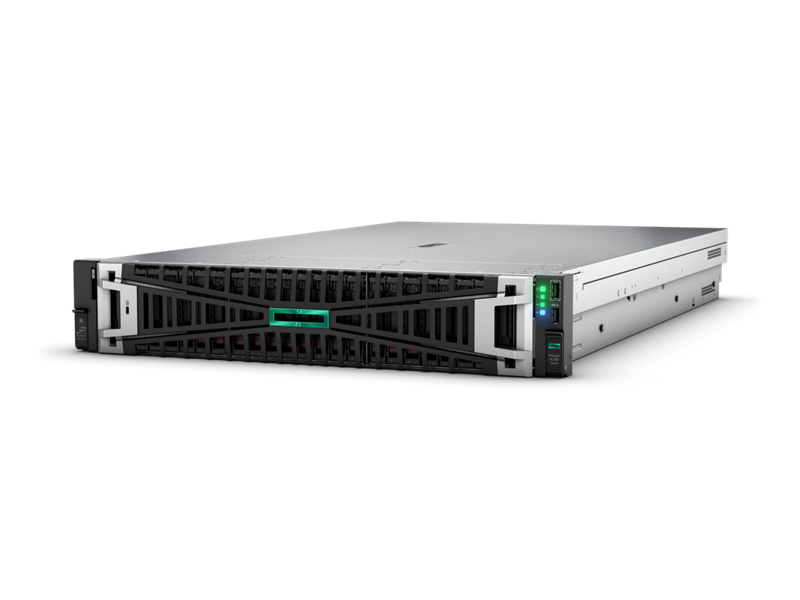

HPE ProLiant DL380 Gen11 server

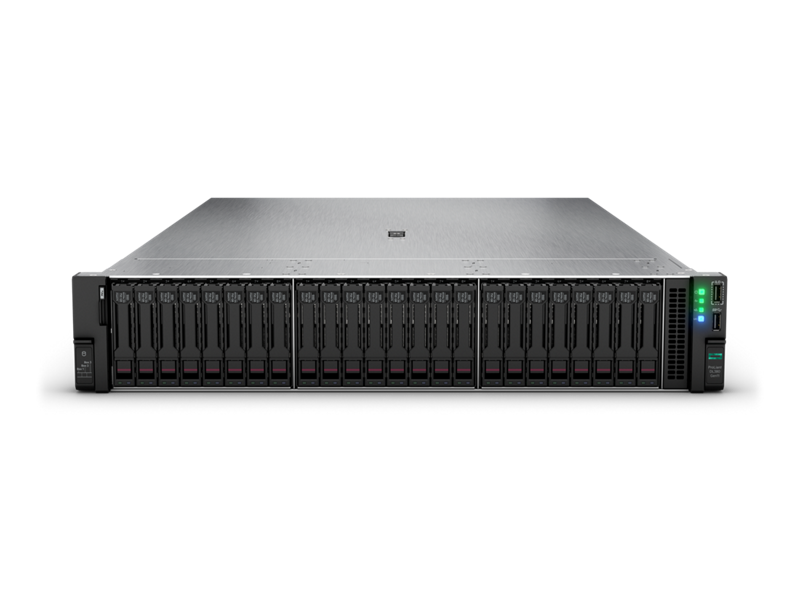

Front View – SFF chassis with optional Universal Media bay shown
| 1 |
Optional Front Display Port (via Universal Media Bay) |
| 2 |
Box 1 (shown with optional Universal Media Bay installed) |
| 3 |
Box 2 (shown blank) |
| 4 |
Quick removal access panel |
| 5 |
UID button/LED |
| 6 |
NIC Status |
| 7 |
Health LED |
| 8 |
Power On / Standby button and LED |
| 9 |
iLO Service Port |
| 10 |
USB 3.0 |
| 11 |
Box 3 (shown with 8SFF drives populated) |
| 12 |
Optional USB 2.0 (via Universal Media Bay) |
| 13 |
Drive Support Label |
| 14 |
Serial Number Label Pull Tab |

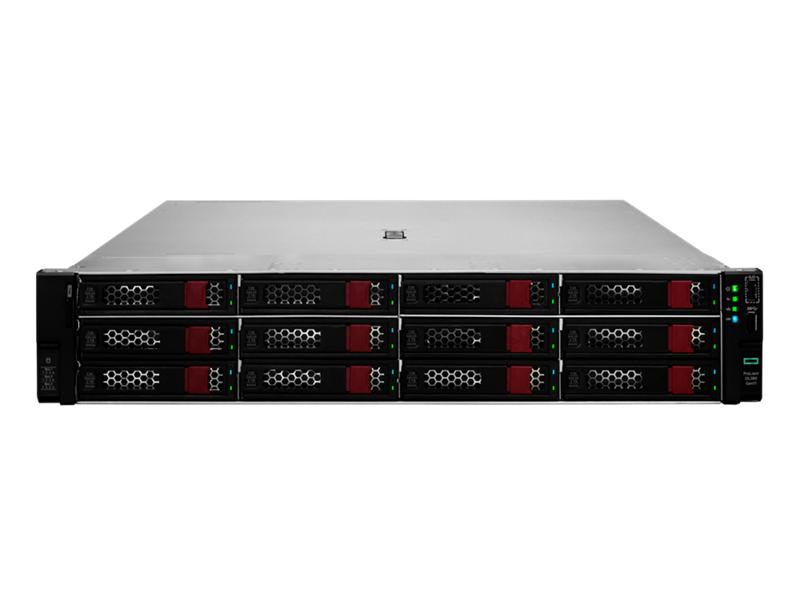

Front View – 12LFF chassis shown
| 1 |
Quick removal access panel |
| 2 |
UID Button / LED |
| 3 |
NIC Status |
| 4 |
Health LED |
| 5 |
Power On / Standby button and LED |
| 6 |
iLO Service Port |
| 7 |
USB 3.0 |
| 8 |
12 x LFF Media |
| 9 |
Drive support label |
| 10 |
Serial Number Label Pull Tab |

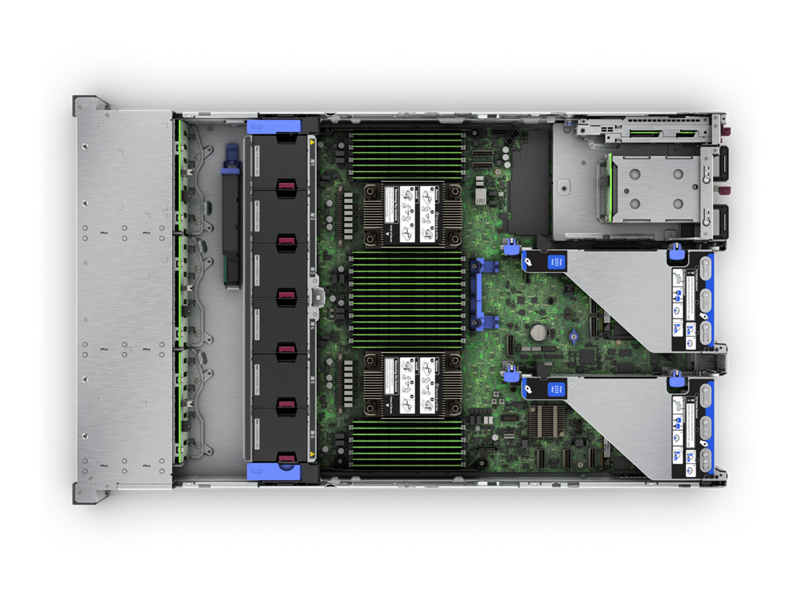

Internal View 8SFF chassis
| 1 |
Hot Plug Fans1 |
| 2 |
Processors, heatsinks showing |
| 3 |
Optional NS204i-u Boot Device |
| 4 |
Hot Plug redundant HPE Flexible Slot Power Supplies |
| 5 |
Secondary Riser (Optional) (Requires second processor) |
| 6 |
Primary Riser |
| 7 |
DDR5 DIMM slots, shown fully populated in 32 slots2 |
| 8 |
Drive Backplanes |
| 9 |
Drive Cages |
Notes:
- High performance temperature fans optional
- Shown fully populated in 32 slots (16 per processor)

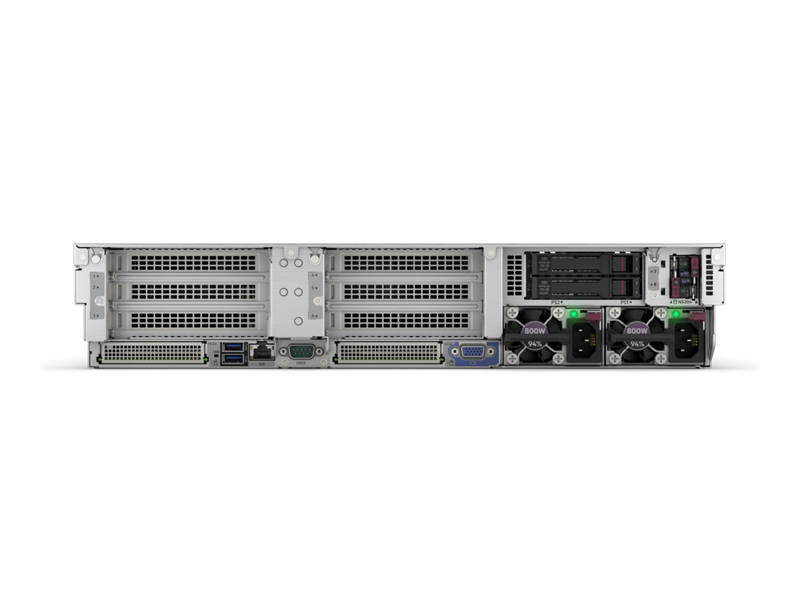

Rear View – Standard for all DL380 Gen11
| 1 |
Primary Riser. PCIe 5.0 Slots (Slots 1-3) |
| 2 |
OCP 3.0 Slots, shown covered |
| 3 |
Secondary Riser. PCIe 5.0 Slots (Slots 4-6) |
| 4 |
Tertiary Riser (Slots 7-8) shown with optional 2SFF drive cage installed |
| 5 |
Optional NS204i-u Boot Device |
| 6 |
Power Supply 1 and 2 |
| 7 |
VGA Connector |
| 8 |
Optional Serial Port |
| 9 |
Dedicated iLO Management Port |
| 10 |
USB 3.0 Connectors (2) |
| 11 |
UID Indicator LED |
Notes:
- Supports various NICs, and Storage controllers.
