HPE ProLiant DL320 Gen11 6530 Server
32‑core 2.1GHz, 128GB RAM
Fast Delivery
Pre-Configured
Ships Immediately
Quick Specs:
Find the Right Services & Add-Ons
Jump to the pricing table to view available options. If you don’t find exactly what you need, our team will guide you and tailor a solution.
Overview:
Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage?
The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads
Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 60 cores, 270W, increased memory capability (up to 2 TB 5600 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect lowcost, 1U 1P, performance solution.
The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What's New
- Powered by the 4th and 5th Gen Intel® Xeon® Scalable Processors with nextgeneration 5nm technology that supports up to 60 cores at 270W and 16 DIMMs of DDR5 memory up to 5600 MT/s.
- 16 DIMMs per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
- Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 1 OCP3.0 slots.
- Includes the new HPE Integrated LightsOut 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
- Supports hot-pluggable or internal, highavailability RAID1 NVMe M.2 boot options.
- Support for up to 4 Single Wide or 2 Double Wide GPUs in the front cage with the GPU CTO server.
Features:
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated
HPE ProLiant DL320 Gen11 servers are engineered for your hybrid world. The HPE ProLiant DL320 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.
Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.
These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consume as-a-service using HPE GreenLake as your compute and storage demands grow.
Simplify and secure server management from edge to cloud with HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.
Trusted Security by Design: Uncompromising, Fundamental, and Protected
The HPE ProLiant DL320 Gen11 server is tied into the silicon root of trust and the 4th and 5th Gen Intel® Xeon® Scalable Processor, a dedicated security processor embedded in the Intel Xeon system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.
HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the Intel® Xeon® Processor that must be matched exactly before the server will boot. This ensures malicious code is contained and healthy servers are protected.
HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.
HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing the fastest path to bring a server back online and into normal operations.
From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.
Optimized Performance for your Workloads: Accelerated, Open, and Efficient
The HPE ProLiant DL320 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
Harness major computer performance. The HPE ProLiant DL320 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with modern 5nm technology that support up to 60 cores and 270W TDP.
Enjoy advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 1 OCP slots to improve I/O throughput and reduce latency.
Utilize 16 DIMM channels per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements..
Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Delivered As-a-Service
The HPE ProLiant DL320 Gen11 server is supported by HPE GreenLake to simplify IT. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.
Hewlett Packard Enterprise provides customers choice in how they acquire and consume IT. Beyond traditional financing and leasing, HPE offers options that free trapped capital, accelerate infrastructure updates and provide for onpremises pay-per-use consumption with HPE GreenLake.
Rapidly deploy a broad portfolio of cloud services such as, containers, compute, virtual machines (VMs), accelerated storage, data protection, and more. Workload-optimized, preconfigured solutions can be quickly on-boarded, accelerating your agility.
Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Technical Specifications:
HPE ProLiant DL320 Gen11 6530 2.1GHz 32c 1P 128GB-R 10SFF MR416i-o 3x2.4TB HDD 2x1000W PS NA Server Specifications | |
---|---|
Detailed product description | HPE ProLiant DL320 Gen11 10 SFF rack server with one Intel® Xeon® Gold 6530 processor, 128 GB dual rank memory, one HPE MR416i-o Gen11 storage controller, three 2.4 TB SAS HDDs, two 1.92 TB SATA SSDs, seven high performance fans, two HPE 1000W Flex Slot Titanium Hot Plug Power Supplies, and a 3/3/3 warranty |
Product Number | P78100-005 |
Processor name | Intel® Xeon® Gold 6530 (32 core, 2.10 GHz, 160 MB L3, 270W) |
Processor number | 1 processor included |
Processor core available | 32 core |
Processor cache | 160 MB L3 |
Processor speed | 2.10 GHz |
Power supply type | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
Expansion slots | Maximum, 2 PCIe Gen5 & 1 OCP 3.0 PCIe Gen5, for detail descriptions please refer to the QuickSpecs. |
Memory type | HPE DDR5 Smart Memory |
Included Memory | 128 GB (2x64 GB, 5600 MT/s) |
Included drives | 3x 2.4TB SAS HDD 2x 1.92TB SATA SSD |
Optical drive type | None included, optional HPE 9.5mm SATA DVD-RW Optical Drive or HPE Mobile USB DVD-RW Drive |
System fan features | 7x High Performance fans |
Network controller | Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter |
Storage controller | HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller |
Infrastructure management | Included - HPE GreenLake for Compute Ops Management, HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, and HPE OneView Advanced. |
Warranty | 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. |
Hardware Specs:
HPE ProLiant DL320 Gen11 server

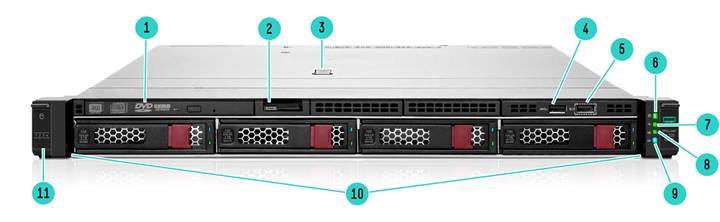

Front View - 4LFF + optional Optical Drive shown
1 | Optical Disk Drive (optional - shown) |
2 | Serial number/iLO information pull tab |
3 | Quick removal access panel |
4 | USB 3.2 Gen1 port |
5 | iLO Service Port |
6 | Power On / Standby button and LED |
7 | Health LED |
8 | NIC Status |
9 | UID Button/LED |
10 | Four (4) LFF Drive Cage (shown with drives) |
11 | Drive support label |
Notes: Optional Display port and USB 2.0 port also supported which is not shown here.

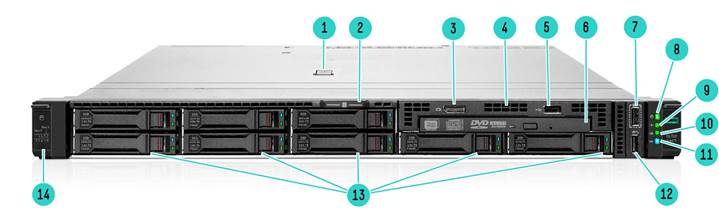

Front View- 8 SFF + optional Universal Media Bay and optical drive shown
1 | Quick removal access panel |
2 | Serial number/iLO information pull tab |
3 | Display Port (optional via Universal Media Bay – shown) |
4 | Universal Media Bay or 2 SFF Drive Bay (shown with ODD, Display & USB port) |
5 | USB 3.2 Gen1 port (optional via Universal Media Bay – shown) |
6 | Optical disk drive (optional via Universal Media Bay– shown |
7 | iLO Service Port |
8 | Power On / Standby button and LED |
9 | Health LED |
10 | NIC Status |
11 | UID Button/LED |
12 | USB 3.2 Gen1 port |
13 | 8SFF Drive Cage (shown with drives) |
14 | Drive support label |

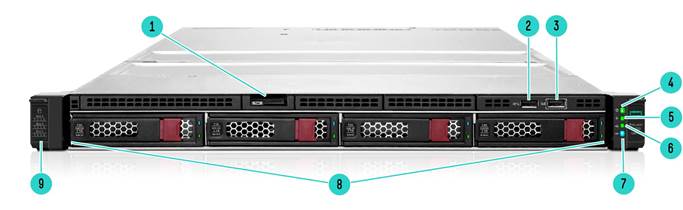

Front View
1 | Serial number/iLO information pull tab |
2 | One (1) USB 3.2 Gen1 Port |
3 | iLO Service Port |
4 | Power On/Standby button and LED |
5 | Health LED |
6 | NIC Status |
7 | UID Button/LED |
8 | 12 x LFF Drive Cage (4 Shown populated, 2 rows of 4 behind) |
9 | Drive support label |

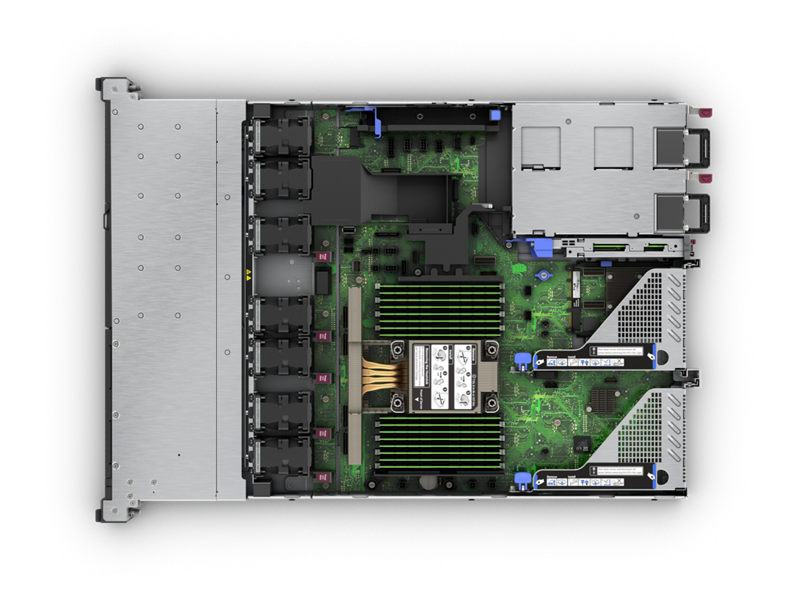

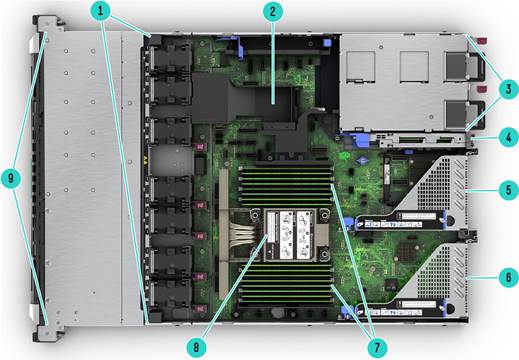

Internal View – 8SFF Chassis
1 | Up to 7 Hot Plug Fans |
2 | Two (2) M.2 module connectors (under the air baffle- not visible) |
3 | Hot-plug Power Supply 1 and 2 |
4 | NS204i-u Boot Device (optional - shown) |
5 | Slot-1 PCIe5 x16 FHHL (Primary Riser) |
6 | Slot-2 PCIe5 x16 FHHL (Secondary Riser) |
7 | 16 DDR5 DIMM slots (shown) |
8 | Heat Sink |
9 | Drive Cage |

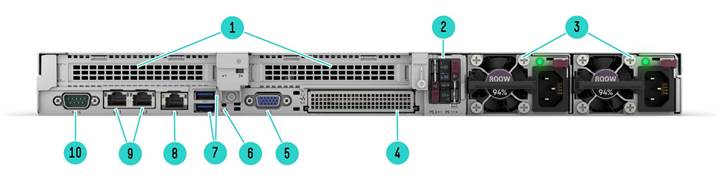

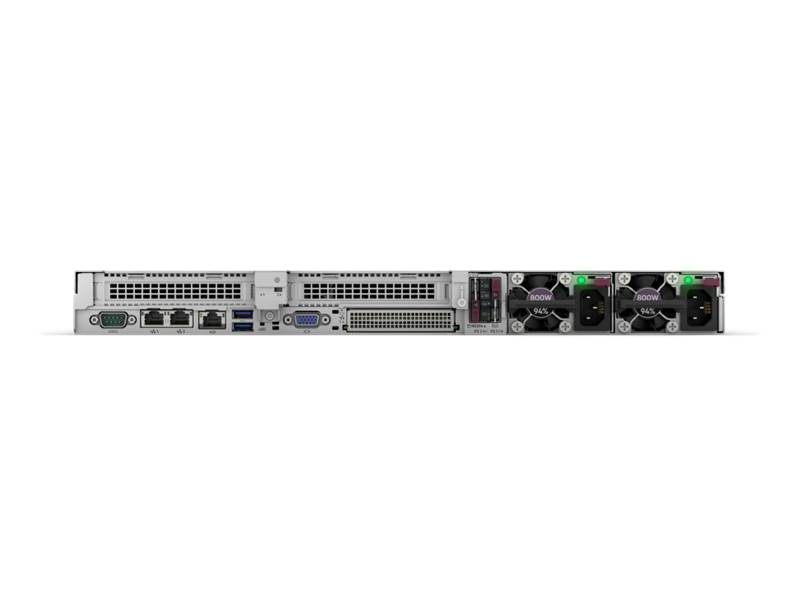

Rear View – Standard for all DL320 Gen11
1 | Slot-1 & 2 PCIe5 x16 FHHL (Primary and Secondary Riser) |
2 | NS204i-u Boot Device (optional – shown) |
3 | Hot-plug Power Supply 1 and 2 |
4 | OCP 3.0 Slot (shown covered) |
5 | Video (VGA) port |
6 | UID Indicator LED |
7 | Two (2) USB 3.2 Gen1 ports |
8 | Dedicated iLO management port |
9 | Embedded 1x2 network port |
10 | Serial port (optional) |
Services & Add-Ons:
HPE Tech Care (Support Plans)
HPE Tech Care is an operational support service from HPE for hardware, software, and multivendor systems. It helps your systems run smoothly, improves reliability, and drives performance. Official HPE Tech Care Datasheet
- Hardware & software support from HPE experts
- Access via phone, email, chat & self-service tools
- Standard response times & on-site as per HPE availability
- General technical guidance for operations & management
- All features in Basic, plus faster response & support
- Enhanced phone response; quicker callback for severity-1 incidents
- Proactive technical guidance and more frequent advisory from HPE
- Self-serve tools and knowledge base + access to digital insights via HPE
Feature | Basic | Essential |
---|---|---|
Hardware & Software Coverage | HPE-provided support for both hardware & software | Same, with faster response & enhanced assistance |
Support Channels | Phone, email, chat, self-service tools | All channels + more aggressive response SLAs |
Response Time | Standard response per HPE’s availability | Improved/faster response for high-severity issues (e.g. severity-1) |
Proactive Guidance | General technical guidance | Extra guidance in usage, management, and performance opportunities |
HPE iLO Advanced (Remote Management)
HPE Integrated Lights-Out (iLO) Advanced unlocks secure, full-feature remote administration for HPE ProLiant servers—enabling setup, monitoring, troubleshooting, and power control from anywhere.
Key Capabilities
- Integrated Remote Console with virtual keyboard and mouse
- Virtual media & folders for remote OS/software installs
- Console record & playback for audit and troubleshooting
- Collaborative access for multiple administrators
- Power/thermal monitoring with history and dynamic capping
- iLO Federation group management (group media, power, licensing)
Security & Compliance
- Silicon Root of Trust and platform component integrity checks
- Directory integration and 2-factor authentication (CAC/PIV)
- Device identity (IDevID/LDevID) aligned with IEEE 802.1AR
- Kerberos-based single sign-on for streamlined access
Feature | iLO Standard | iLO Advanced |
---|---|---|
Remote Console | Basic access | Full Integrated Remote Console with collaboration |
Virtual Media | Limited | Virtual media & folders for remote installs |
Recording | — | Console record & playback |
Power & Thermal | Monitoring | Monitoring + history and dynamic power capping |
Federation (Group Mgmt) | Limited | Group media, power control, power capping, license activation |
Security | Baseline iLO security | Directory auth, CAC/PIV, Kerberos, device identities, silicon root of trust enhancements |
Microsoft Windows Server 2025 (ROK AMS Software)
Choose the right edition of Microsoft Windows Server 2025 to power your Smart Choice Servers and Storage. Each edition is tailored to different business sizes and virtualization needs.
Essentials10-Core
- Up to 25 users / 50 devices
- Simplified licensing for small businesses
- No virtualization rights
Standard16-Core
- For growing businesses
- Supports 2 virtual machines
- Full Windows Server feature set
Datacenter16-Core
- For enterprises & data centers
- Unlimited virtualization rights
- Advanced features for large-scale workloads
Edition | Best For | Virtualization | Users / Devices |
---|---|---|---|
Essentials | Small businesses | None | 25 users / 50 devices |
Standard | SMBs with moderate workloads | Up to 2 VMs | Licensed per 16-core base + CALs |
Datacenter | Enterprises / virtualization-heavy environments | Unlimited VMs | Licensed per 16-core base + CALs |
HPE Storage Options
Choose the right storage for your Smart Choice Servers. HPE offers HDD, SSD, and SAS options, each with different balances of cost, performance, and reliability.
HDD Hard Disk Drive
- Large capacity, lower cost
- Slower performance
- Great for bulk storage & backups
SSD Solid-State Drive
- High performance, faster boot & apps
- Better for databases & OS
- Higher cost per GB
SAS Serial Attached SCSI
- Enterprise-grade reliability
- High performance for mission-critical workloads
- Designed for 24/7 operations
Type | Best For | Performance | Cost |
---|---|---|---|
HDD | Bulk storage, backups | Slowest | Low |
SSD | OS, applications, databases | High | Medium–High |
SAS | Enterprise workloads, 24/7 uptime | Very High | High |
HPE Memory Options
Smart Choice Servers and Storage support DDR5 memory for improved performance, efficiency, and scalability. Choosing the right amount of memory ensures your workloads run smoothly, whether it’s databases, virtualization, or everyday applications.
16GB DDR5-4800
- Good for basic workloads & file servers
- Suitable for small office environments
- Entry-level performance
32GB DDR5-4800
- Ideal for virtualization, databases, and multitasking
- Supports more demanding business workloads
- Higher performance headroom
Option | Best For | Performance | Scalability |
---|---|---|---|
16GB DDR5-4800 | Entry workloads, file/print servers | Baseline | Limited |
32GB DDR5-4800 | Virtualization, databases, larger workloads | High | Better scalability with more DIMMs |
Quick Recommendations
To help you decide, we’ve put together sample configurations that match common business needs.
Small Office / Basic Workloads
- Support: Tech Care Basic (3Y)
- Remote Mgmt: Optional iLO Advanced
- OS: Windows Server 2025 Essentials
- Storage: HDD (affordable, large capacity)
- Memory: 16GB DDR5
Why: Essentials edition is perfect for ≤25 users, while 16GB RAM and HDDs keep costs low. iLO Advanced is optional if you don’t need remote management.
Growing Business / Virtualization
- Support: Tech Care Essential (5Y)
- Remote Mgmt: iLO Advanced (3Y)
- OS: Windows Server 2025 Standard
- Storage: SSD (OS/apps) + HDD (data)
- Memory: 32GB DDR5
Why: Standard edition allows up to 2 VMs for growth. A mix of SSD + HDD balances performance and cost. iLO Advanced ensures remote management as IT expands.
Enterprise / Mission-Critical Workloads
- Support: Tech Care Essential (5Y)
- Remote Mgmt: iLO Advanced with Federation
- OS: Windows Server 2025 Datacenter
- Storage: SAS drives (high reliability)
- Memory: 32GB+ DDR5 (expandable)
Why: Datacenter edition unlocks unlimited virtualization. SAS drives support 24/7 uptime, while more RAM ensures smooth performance across many workloads.
Branch Office / Remote Site
- Support: Tech Care Essential (3Y)
- Remote Mgmt: iLO Advanced (critical for remote access)
- OS: Windows Server 2025 Standard
- Storage: SSD for fast apps, small HDD for data
- Memory: 16GB or 32GB DDR5
Why: Remote management via iLO is vital since IT staff may not be on-site. Standard edition supports light virtualization or file/print roles for branch users.
Development / Test Lab
- Support: Tech Care Basic (1–3Y)
- Remote Mgmt: iLO Advanced (collaboration features)
- OS: Windows Server 2025 Standard
- Storage: SSD-heavy (fast rebuilds)
- Memory: 32GB DDR5
Why: Developers benefit from iLO’s remote console recording/playback and SSD speed for frequent rebuilds. Standard edition licensing suits multiple test VMs.
Documentation:
Download the HPE ProLiant DL320 Gen11 6530 2.0GHz 16-core 1P 64GB-R 8SFF 800W PS AMS Server Data sheet (.PDF)
Download the HPE ProLiant DL320 Gen11 server Datasheet (.PDF)
Download the HPE ProLiant DL320 Gen11 server Quick Specs (.PDF)
*Intel, Intel Xeon, and Intel Optane are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. All third-party marks are property of their respective owners.
Pricing Notes:
- Pricing and product availability subject to change without notice.
List Price:
Our Price: $502.55
List Price:
Our Price: $931.95
List Price:
Our Price: $717.25
List Price:
Our Price: $1,288.20
List Price:
Our Price: $445.55
List Price:
Our Price: $379.05
List Price:
Our Price: $445.55
List Price:
Our Price: $379.05
List Price:
Our Price: $1,089.65
List Price:
Our Price: $5,426.40
List Price:
Our Price: $422.75
