Overview:
Discontinued
We encourage you to check out our HPE ProLiant Gen11 Servers.
Notice
This unit has been discontinued and is no longer available for purchase.
The HPE ProLiant DL160 Gen10 series is replaced by HPE ProLiant Gen11 Servers.
| End-of-Life (EOL) |
Q1 2025 |
We will no longer provide technical support or hardware replacement for this product after End-of-Life (EOL) date.
Are you searching for a dense HPE ProLiant server with exceptional value to run on-premises and hybrid cloud solutions?
The secure 2P 1U HPE ProLiant DL160 Gen10 server delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of growing businesses of a diverse set of customers – from SMB to service providers running a wide range of workloads at a compelling price point.
What's New
- Supports additional second generation Intel® Xeon® Scalable processors delivering exceptional customer value with increased performance.
- Provides an intelligent platform for HPE Small Business Solutions built for top SMB use cases, and together forms the foundational on-premises components for the Hybrid Cloud.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
- Available aggressively priced SMB offer models regionally released as “Smart Buy Express” in the U.S. and Canada, “Top Value” in Europe, and “Intelligent Buy” in Asia Pacific.
Features:
Scalability and Efficiency in a Dense Design
Supports 1st and 2nd generation Intel® Xeon® Scalable processors, up to 26 cores and up to 150W.
Deploy mid-level virtualization, IT/ web infrastructure for SMBs and small enterprises.
Right balanced server to support multiple workloads.
Agile, Secure Infrastructure Management for Accelerating IT Service Delivery
HPE iLO 5 enables the world’s most secure industry standard servers with HPE silicon root of trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
Features include iLO Security Dashboard that helps detect and address possible security vulnerabilities and Workload Performance Advisor that provides server tuning recommendations for better server performance.
Millions of lines of firmware code run before the server OS boots and with Runtime Firmware Verification, enabled by HPE iLO Advanced. The server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.
Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.
Industry-Leading Serviceability and Simplified Deployment
HPE ProLiant DL160 Gen10 server comes with a complete set of services offered by HPE Pointnext, delivering confidence, reducing risk, and helping customers realize agility and stability.
Services from HPE Pointnext simplify the stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an enhanced solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Specifications:
| HPE ProLiant DL160 Gen10 Server Specifications |
| Processor Type |
Intel |
| Processor family |
Intel® Xeon® Scalable 3200-8200 series & Intel® Xeon® Scalable 3100-8100 series |
| Processor core available |
4 to 26 core, depending on processor |
| Processor cache |
11 MB L3 |
| Processor speed |
8.25-35.75 MB L3, depending on processor |
| Maximum memory |
1.0 TB with 64 GB DDR4 |
| Memory slots |
16 DIMM slots |
| Memory type |
HPE DDR4 SmartMemory |
| NVDIMM type |
None |
| Drive supported |
4 LFF SAS/SATA, 8 SFF SAS/SATA + 2 additional SAS/SATA (optional) depending on model |
| Infrastructure management |
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses) |
| System fan features |
Standard single rotor hot swap fans |
| Power supply type |
Up to 2 HPE Flexible Slot Power Supplies |
| Expansion slots |
3, for detailed descriptions reference the QuickSpecs |
| Network controller |
HPE embedded 2-port 1 GbE Ethernet adapter and optional HPE FlexibleLOM, Media Module Adapter, or PCIe stand-up card |
| Storage controller |
HPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model |
| Warranty |
3/3/3 Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, please Contact Us. |
| Processor Name |
Intel |
| Processor number |
1 or 2 |
| Processor speed |
3.8 GHz maximum depending on processor |
| Memory, standard |
16 GB (1 X 16 GB) RDIMM |
| Included hard drives |
None ship standard, 4 LFF drives and 8-10 SFF drives supported |
| Optical drive type |
Optional: DVD-ROM or DVD-RW |
| Security |
Optional locking Bezel Kit, Intrusion Detection Kit, or HPE TPM 2.0 |
| Form factor |
1U |
| Minimum dimensions ( H x W x D) |
1.69 x 17.11 x 24.21 in |
| Minimum dimensions ( H x W x D) |
4.29 x 43.46 x 61.49 cm |
| Weight |
24.19 lb minimum, 34.69 lb maximum |
| Weight |
10.97 kg minimum, 15.74 kg maximum |
| Infrastructure management |
HPE iLO Standard with Intelligent Provisioning (embedded), HPE iLO Advanced, and HPE iLO Advanced Premium Security Edition |
| Warranty |
3/3/3 Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support. |
Hardware Specs:
HPE ProLiant DL160 Gen10 Server
The secure 2P 1U HPE ProLiant DL160 Gen10 server delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of growing businesses of a diverse set of customers – from SMB to Service Providers running wide range of workloads - at a compelling price point.

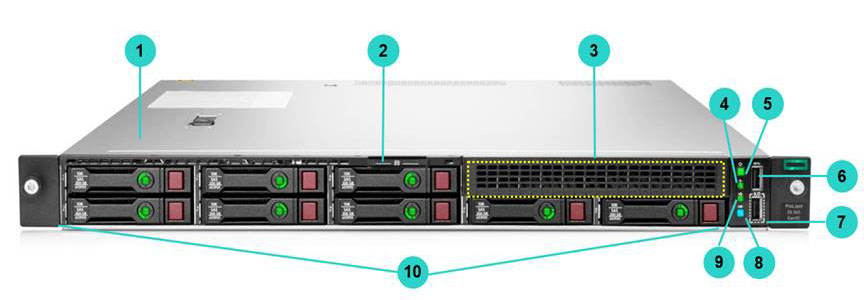

8 SFF chassis - Front View
| 1 |
Quick removal access panel |
| 2 |
Serial no. label pull tab |
| 3 |
Media Bay (blank shown)* |
| 4 |
Health LED |
| 5 |
Power On/Standby button and system power LED |
| 6 |
USB 3.0 port |
| 7 |
iLO Service Port |
| 8 |
UID button/LED |
| 9 |
NIC Status LED |
| 10 |
Standard 8 SFF SAS/SATA drive bays |
Notes:
- *Option a: +2SFF SAS/SATA (total max 10SFF)
- *Option b: DVD-RW or DVD-ROM

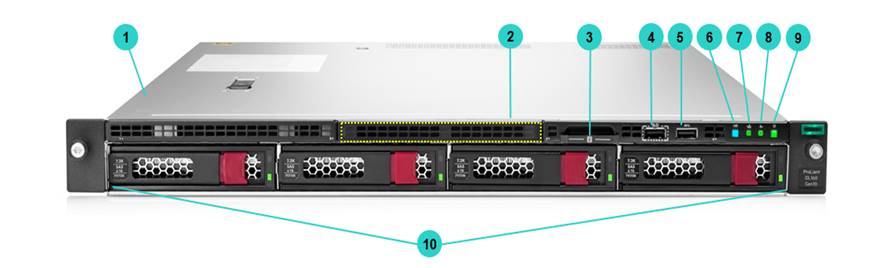

4 LFF chassis - Front View
| 1 |
Quick removal access panel |
| 2 |
DVD-RW or DVD-ROM (blank shown)* |
| 3 |
Serial no. label pull tab |
| 4 |
iLO Service Port |
| 5 |
USB 3.0 Port |
| 6 |
UID button/LED |
| 7 |
NIC status LED |
| 8 |
Health LED |
| 9 |
Power On/Standby button and system power LED |
| 10 |
4 LFF SAS/SATA drive bays |
Notes: *Optional

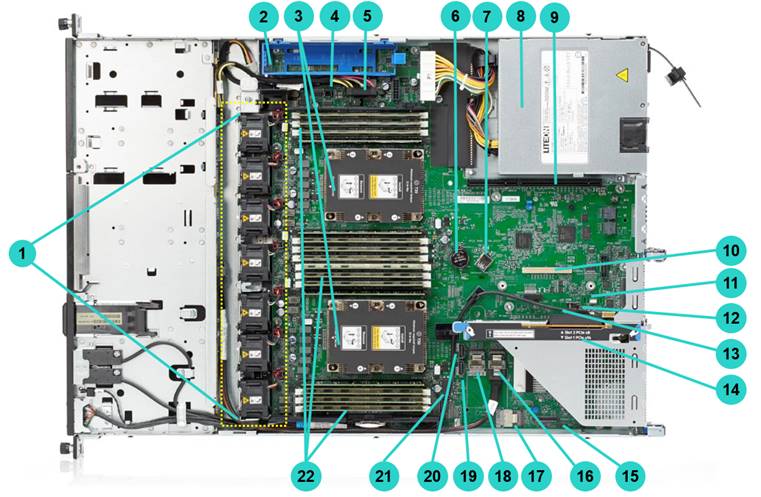

8SFF chassis – with optional 2nd CPU - Internal View
| 1 |
Standard single rotor hot swap fans
1 CPU – 3 standard fans
2 CPUs – 6 standard fans (1 redundant fan shown)* |
| 2 |
Smart Storage Battery (No battery shown)* |
| 3 |
Up to 2 processors (shown with standard heat sinks) |
| 4 |
Chassis Intrusion Detection connector* |
| 5 |
Hard Drive backplane power connector |
| 6 |
System Battery |
| 7 |
Internal USB 3.0 connector |
| 8 |
Power supply (non-redundant power supply shown) |
| 9 |
Secondary (CPU2) PCIe 3.0 riser |
| 10 |
Flexible Smart Array Controller Connector |
| 11 |
TPM 2.0* |
| 12 |
MicroSD card slot |
| 13 |
iLO Service Port Connector |
| 14 |
Standard: 1x16 and 1x8
FlexibleLOM (1X8 FlexibleLOM, 1X8 Low Profile) * |
| 15 |
Media Module Connector |
| 16 |
Mini-SAS port 1 |
| 17 |
Mini-SAS port 2 |
| 18 |
Mini-SAS port 3 |
| 19 |
SATA port 4 |
| 20 |
SATA port 5 |
| 21 |
Front Power USB 3.0 connector |
| 22 |
DDR4 DIMM slots
(Fully populated 16 DIMMs shown) |
Notes: *Optional

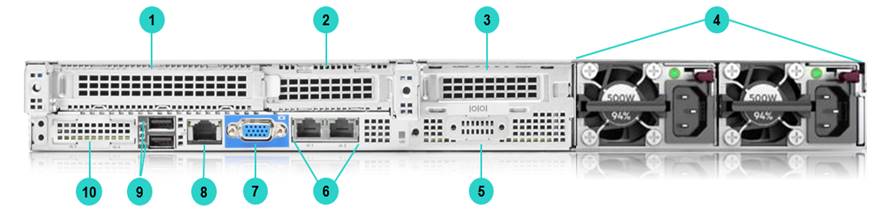

Rear View
| 1 |
Slot 1 PCIe 3.0 |
| 2 |
Slot 2 PCIe 3.0 |
| 3 |
Slot 3 PCIe 3.0 (Requires 2nd processor)* |
| 4 |
Power Supply (Redundant hot-plug shown) |
| 5 |
Serial Port* |
| 6 |
Embedded 2x 1GbE Adapter |
| 7 |
VGA Port |
| 8 |
iLO Management Port |
| 9 |
2x USB 3.0 Ports |
| 10 |
Media Module* |
Notes: *Optional
